Microwave Magnetron

About Microwave Magnetron

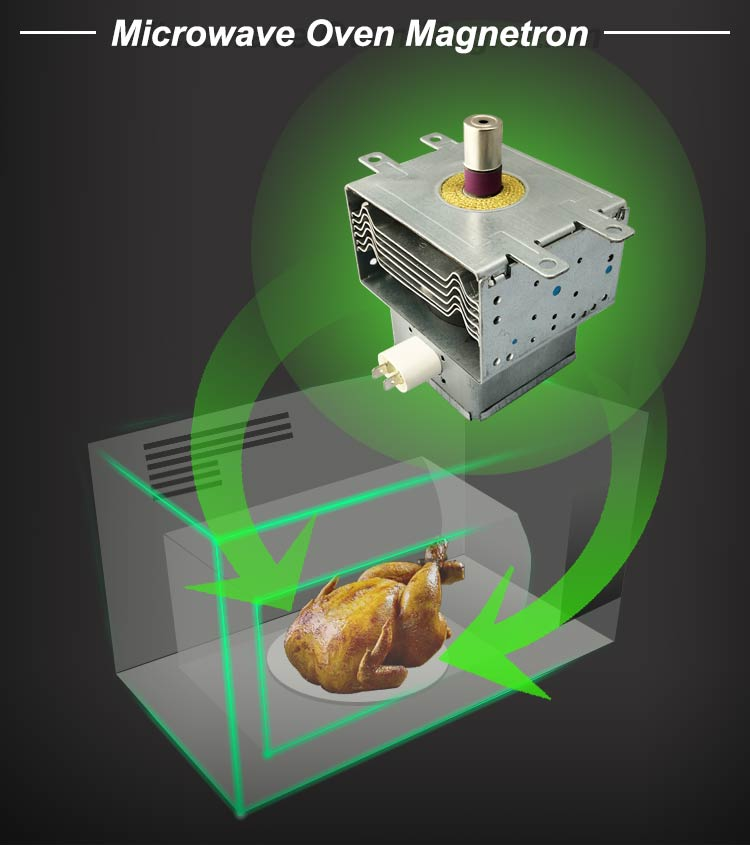

A Microwave Magnetron is a crucial component used in microwave ovens and other microwave-based devices. It is a specialized vacuum tube that generates microwaves by using high-voltage electrical energy. The magnetron works by converting electrical energy into microwave radiation, which is then used for various applications, such as heating food in a microwave oven, radar systems, and medical treatments. Heres a detailed description of its features:

---

Key Features:

1. High Efficiency:

   • The microwave magnetron is designed to convert electrical power into microwave radiation with high efficiency, typically around 70-80%. This ensures that the energy generated is used effectively, minimizing waste.

2. Compact Size:

   • Modern magnetrons are compact, making them ideal for integration into appliances like microwave ovens, industrial equipment, and radar systems, without requiring significant space.

3. Stable Operation:

   • The magnetron operates with consistent frequency and power output, providing stable microwave radiation. This is essential for precise and reliable performance in various applications, especially in microwave ovens.

4. High Power Output:

   • Magnetrons are capable of generating power levels ranging from a few watts up to several kilowatts, depending on the design. This versatility allows them to be used in everything from low-power consumer products to high-power industrial systems.

5. Durability:

   • Built to withstand high temperatures and electrical stresses, microwave magnetrons are designed for long-lasting use, with a typical lifespan of several years in microwave ovens.

6. Frequency Range:

   • Magnetrons typically operate within the 2.45 GHz frequency range for most commercial microwave ovens. This frequency is optimal for heating food and other materials quickly and efficiently.

7. Magnetic Field Utilization:

   • A magnetron generates microwaves by utilizing a strong magnetic field to control the flow of electrons. This results in the creation of microwave radiation at a particular frequency.

Efficient Microwave Energy Generation

This magnetron excels at producing consistent microwave energy, utilizing a high-frequency capacitor function and forced air cooling. The design optimizes heating performance, making it ideal for various cooking or heating tasks in microwave ovens.


Robust Build for Longevity

Manufactured from quality stainless steel and aluminium, the magnetron is built to withstand high operating temperatures up to 160C. Its typical lifespan is approximately 1500 hours, offering reliable service in demanding conditions.


Easy Installation and Compatibility

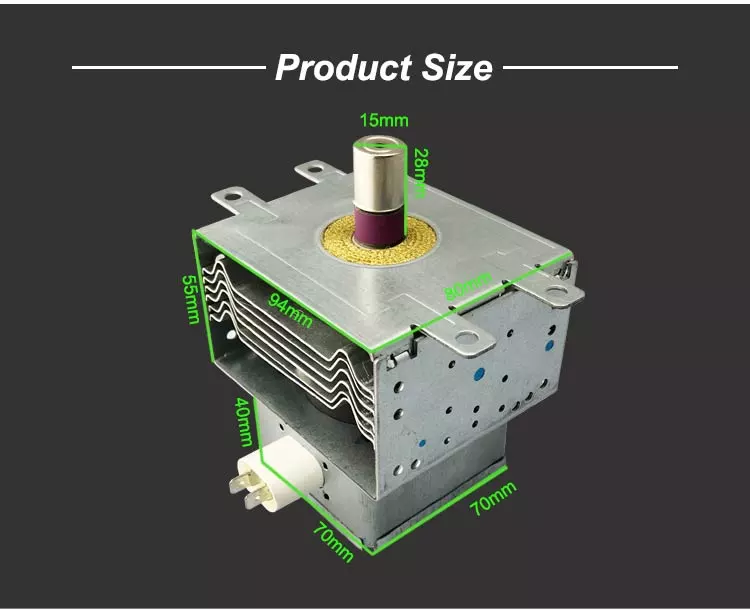

Featuring screw-type mounting, spade terminal connectors, and a compact size, this magnetron can be installed with ease on a panel. It is compatible with standard microwave oven models and fits seamlessly into both new installations and replacements.
